Monfalcone: primary support library digitized in CADWorx
126 modeled supports integrated into CADWorx for the Monfalcone power plant project.

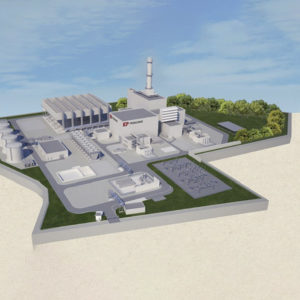

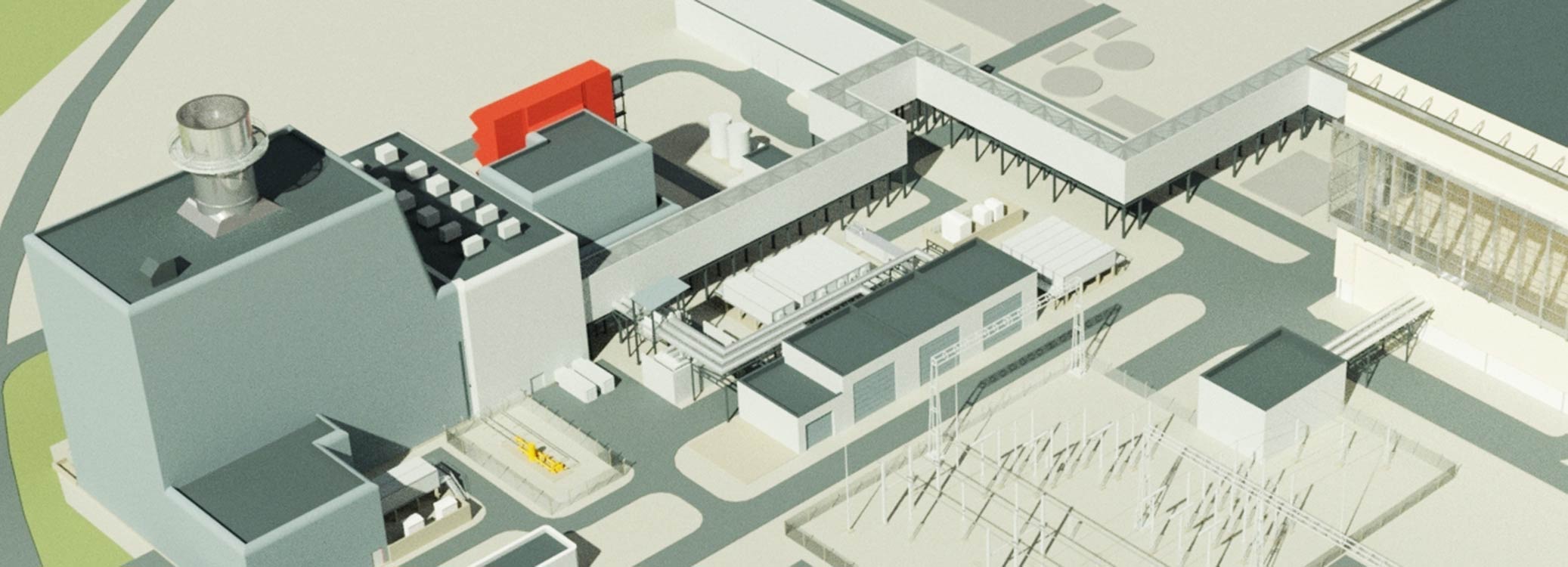

3Units supported the project for the Monfalcone thermoelectric power plant, located on the eastern bank of the Valentinis Canal, covering an area of approximately 30 hectares. As part of the work, 3Units developed the digital primary support library within the CADWorx software database.
The activity involved the modeling and classification of 126 primary support types, divided into 67 simple and 59 complex items, to enable their integration into the 3D plant design model. A highly technical contribution aimed at improving the consistency and efficiency of the detailed engineering phase.
